Epson ET-2400 - All-In-Ones Printer Quick Installation Guide

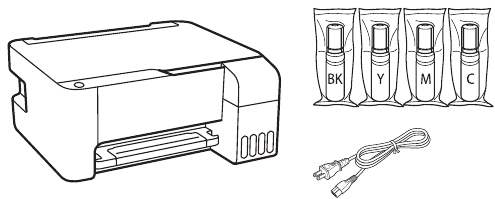

Unpack

Note: Do not open the ink bottles until you are ready to fill the ink tanks. The ink bottles are vacuum packed to maintain reliability.

Remove all protective materials from the product.
Connect the power cord to the back of the product and to an electrical outlet.

Note: Do not connect your product to your computer yet.

Choose a setup method

The Epson Smart Panel app can help you set up your printer through an interactive, step-by-step process using your smartphone or tablet.

To use your mobile device for setup, continue to step 1.
OR

If you do not want to use a mobile device for setup, skip to the "Fill ink tanks" section below.

Press the power button to turn on the product.

Note: Do not connect your product to your computer yet.
Launch the app and follow the instructions to set up your product. If necessary, tap the + icon on the top right corner of the app's home screen, tap Start setting up, and follow the instructions to set up your product.

For information on connecting your product to a computer, using voice-activated printing, solving problems, or for details on reaching Epson support, see the sections on the back of this sheet.

Fill ink tanks

Keep the ink bottles out of the reach of children and do not drink the ink.

This product requires careful handling of ink. If ink spills, wipe it off immediately with a damp towel to avoid permanent stains. If ink gets on your clothes or belongings, it may not come off.

Note:

Open the ink tank cover, then open the cap for the black (BK) ink tank.
Note: Refer to the color-coded sticker on the ink tank unit to identify the color of each tank.
Unpack the black (BK) ink bottle. Hold the ink bottle upright and slowly turn the bottle cap to remove it.

Do not shake or squeeze the ink bottle. Do not touch the top of the ink bottle after its cap is removed.

Insert the ink bottle into the filling port.

Note: Do not force the bottle into position; each bottle is keyed for each color.
Wait for the ink to fill the tank. Do not squeeze the bottle or allow it to contact any other surface.

Note: Ink flows into the tank and stops automatically when the ink tank is filled to the upper line. If ink does not flow from the bottle, lift and reinsert the bottle.
When the ink tank is full, remove the ink bottle and securely close it with the bottle cap. If any ink remains in the bottle, store the bottle upright for later use.

Note: Do not leave the ink bottle inserted; otherwise the bottle may be damaged or ink may leak.

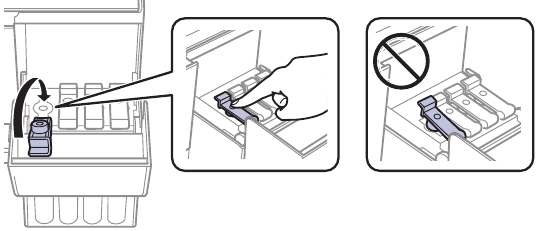

Securely close the black ink tank cap.
Repeat the previous steps for the other colors.

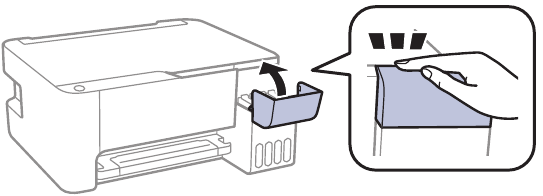

Close the ink tank cover.

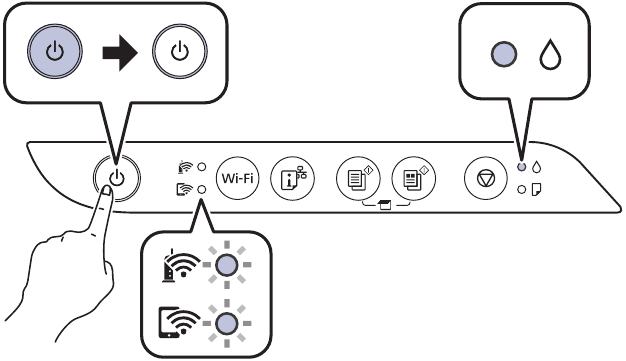

Press the power button to turn on the product, then wait for the power and the ink lights to stay on. The Wi-Fi lights flash alternately.
Press and hold the stop button for 5 seconds until the power light starts to flash and ink charging begins. Ink charging takes about 11 minutes.

Note: When the power light stops flashing, ink charging is complete. Once initial setup of the printer is complete, you can top off the ink tanks with any remaining ink.

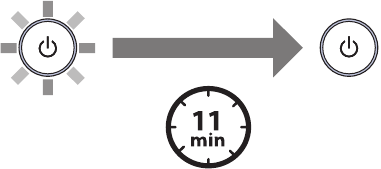

Charging indication

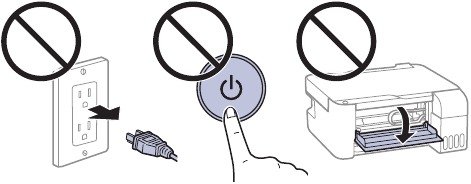

Do not unplug or turn off the product, or open the front cover while the product is charging or you'll waste ink.
Charging precaution

Note: After some ink is used for charging, the rest is available for printing.

After setup, periodically inspect the ink levels to ensure they do not fall below the lowest lines on the tanks. Prolonged use when any level is below the lowest line could damage the product.

Load paper

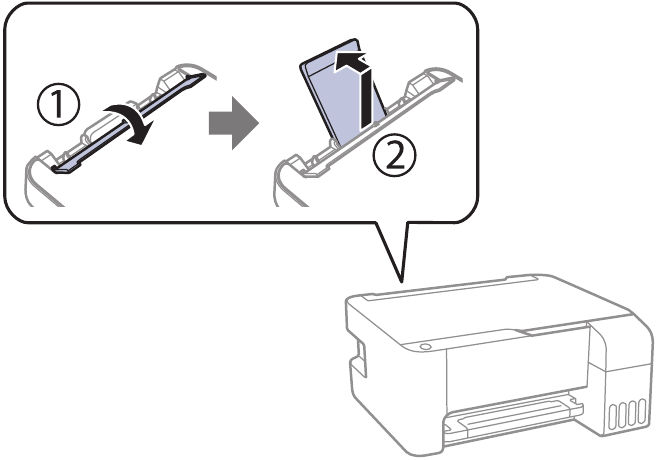

Make sure the product is done charging the ink. Then flip the feeder guard forward, raise the paper support, and tilt it backwards slightly.
Slide the edge guides all the way out.
Load letter-size paper, glossy or printable side up and short edge first, in the middle of the rear paper feeder.
Slide the edge guides against the paper, but not too tightly.
Pull out the output tray, then raise the paper stopper.

Note: To check print quality, turn the printer off, then hold down the stop button while turning on the printer. If the printed patterns are missing segments, clean the print head by holding the stop button for 5 seconds, then print another nozzle check.

Install software

Note:

To print from a Chromebook, go to
http://epson.com/support/chromebookprint (U.S.) or
http://epson.ca/support/chromebookprint (Canada) for instructions.

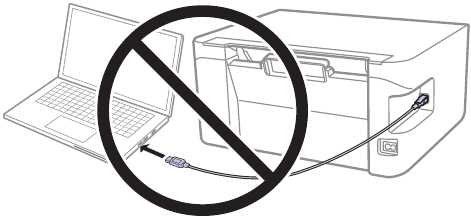

Make sure the product is NOT CONNECTED to your computer.

Windows: If you see a Found New Hardware screen, click Cancel and disconnect the USB cable.
Download and run your product's software package. For the latest software, visit:
http://epson.com/support/et2400 (U.S.)
http://epson.ca/support/et2400 (Canada)

Wireless connection
In most cases, the software installer automatically attempts to set up your wireless connection. If setup is unsuccessful, you may need to enter your network name (SSID) and password.
Direct USB connection
Make sure you have a USB cable (not included).

Mobile and voice-activated printing

Print remotely with Epson Connect. Learn more at
http://epson.com/connect (U.S.) or
http://epson.ca/connect (Canada).
Use voice-activated assistants to print a variety of creative and everyday items from your Epson product. Simply add your product to an Epson Connect account, then link the account to a voice-activated assistant. See http://epson.com/voice (U.S.) or http://epson.ca/voice (Canada) for more information.

* May require the Epson Print Enabler or Mopria Print Service app from Google Play.

Any problems?

Network setup was unsuccessful

If you see a firewall alert message, click Unblock or Allow to let setup continue.

There are lines or incorrect colors in my printouts

Run a nozzle check to see if there are gaps in the printout. Then clean the print head, if necessary.

Setup is unable to find my product after connecting it with a USB cable.
Make sure the product is on and the USB cable is securely connected.

Any questions

Videos

Visit http://epson.com/support/et2400videos (U.S.) or http://epson.ca/support/et2400videos (Canada) to view support videos (videos available only in English).

Technical support

Visit http://epson.com/support/et2400 (U.S.) or http://epson.ca/support/et2400 (Canada) to download drivers, view manuals, get FAQs, or contact Epson.

Call (562) 276-4382 (U.S.) or (905) 709-3839 (Canada), 7 to 4 pm, Pacific Time, Monday through Friday. Days and hours of support are subject to change without notice. Toll or long distance charges may apply.

Recycling

Epson offers a recycling program for end-of-life hardware and ink bottles. Please go to http://epson.com/recycle (U.S.) or http://epson.ca/recycle (Canada) for information on how to return your products for proper disposal.

Need paper and ink?

Ensure brilliant results with Epson specialty and plain papers, engineered specifically for Epson printers. Find Epson papers and Epson Genuine Ink at http://epson.com (U.S. sales) or http://epson.ca (Canadian sales) and at Epson authorized resellers. Call 800-GO-EPSON (800-463-7766).

ET-2400 replacement inks
Color	Part number
Black	522120
Cyan	522220
Magenta	522320
Yellow	522420
