D-Link DKVM-4U - 4-Port USB KVM Switch Quick Install Guide
- Quick installation manual (33 pages) ,
- Technical specifications (2 pages) ,
- Specifications (2 pages)
Package Contents
Thank you for purchasing the DKVM-4U 4-Port USB KVM Switch. Follow the easy steps in this guide to properly set up your KVM switch. Please verify that all the package contents listed below are available.
DKVM-4U 4-Port USB KVM Switch
(2) 6-ft 2-in-1 KVM Cables
If any of the above items are missing, please contact your reseller.
System Requirements
Product Overview
| Item | Feature | Description |
| 1 | Select Button | Press to toggle between your computers. |
| 2 | LEDs | The current selected computer LED will be lit. |
| 3 | USB B Type Port | Connect the USB connector from the KVM cable to this port. |
| 4 | VGA Port | Connect the VGA connector from the KVM cable to this port. |
| 5 | USB B Type Port | Connect the USB connector from the KVM cable to this port. |
| 6 | VGA Port | Connect the VGA connector from the KVM cable to this port. |
| 7 | Keyboard Port | Connect your USB keyboard to this port. |
| 8 | Mouse Port | Connect your USB mouse to this port. |
| 9 | Monitor Port | Connect your monitor to this port. |
Installation
The DKVM-4U is a hot-swappable KVM switch. You do not need to turn your computers off before installing the device.
Steps:
- Using the included KVM cable, attach the VGA connector to the VGA port of the DKVM-4U.
Additional cables sold separately.
Repeat steps 4-7 to connect each of the computers to the DKVM-4U.
Installation of the DKVM-4U is now complete.
Note: If you power on the PC2, PC3, or PC4 without turning on the PC1 first, you need to use a HOT KEY or the Select button to switch the PC to it's corresponding LED.
The USB ports are designed only for Keyboard and Mouse respectively. DO NOT connect the USB HUB to any of the USB ports on console side.
Switching Between Computers
Hot Key Menu

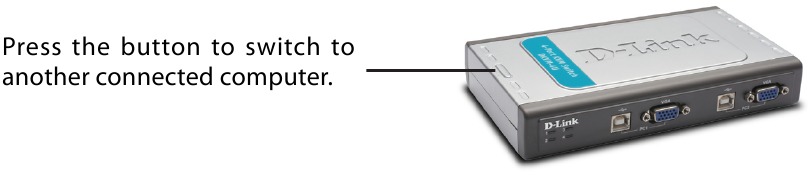

You can also use keyboard Hot Keys to switch between your computers. Press the Scroll Lock key twice to enter Hot Key switching mode. A beep confirms that the Hot Key mode is activated.
- Scroll Lock + Scroll Lock + -->: Switches to next PC
Troubleshooting Tips
When turning the computer on, the keyboard/mouse is not detected, or a keyboard/mouse error message is displayed.
The computer's BIOS is correctly configured but the computer is still unable to detect the mouse and keyboard.
If the image on your monitor is not clear.
When switching to another PC, the computer still displays the original PC.
Technical Support
Having trouble installing your new product? D-Link's website contains the latest user documentation and software updates for D-Link products. U.S. and Canadian customers can contact D-Link Technical Support through our website or by phone.
United States
Telephone: (877) 453-5465
Internet: http://support.dlink.com;
Canada
Telephone: (800) 361-5265
Internet: http://support.dlink.ca
